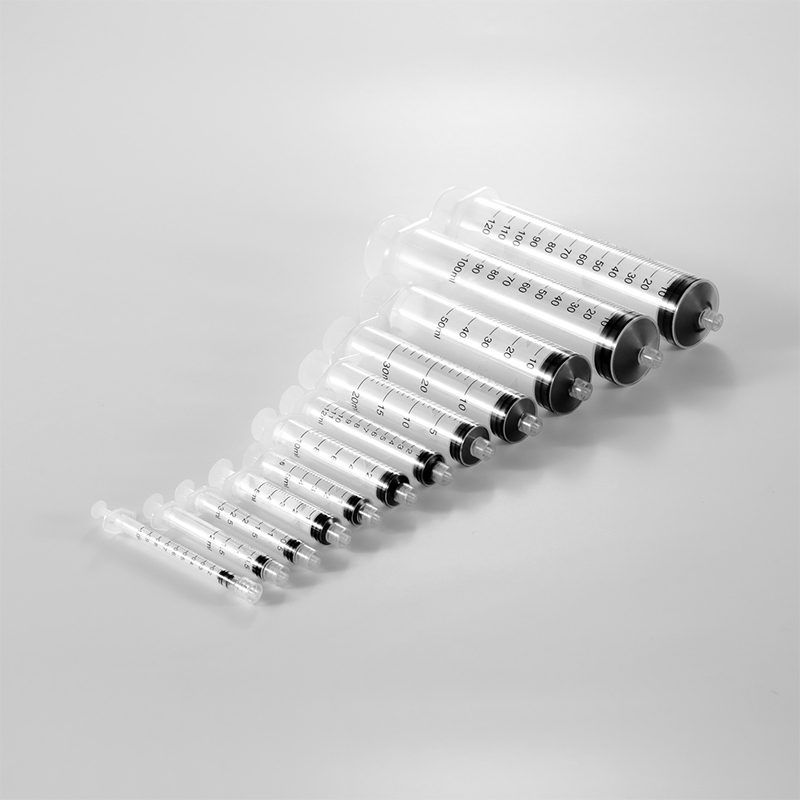

Luer Lock Syringe
/
1. Syringe body is made of medical grade polypropylene.The material is provided by Borouge,SK,Lotte,FPC,SINOPEC or CNPC.
2. Needle is made of medical grade SUS304(steel cannula) and polypropylene(hub).Nipro or Terumo needle is available.
3. Gasket is latex,latex free or butyl rubber.
4. This disposable syringe is used for subcutaneous,intramuscular injection etc.
5. Pyrogen-free,Toxic-free,BPA free,DEHP free.Sterilized by EO gas or Gamma radiation(different material from normal).
6. Primary packaging is blister peel pouch or tear polybag(PE bag).
7. IFU is available.
| Barrel : | Material :Medical and high transparent PP |
| Standard:1ml 2ml 3ml 5ml 10ml 20ml 30ml 50ml 60ml | |
| Plunger : | Material:Medical, entironment-protect and natural rubber. |
| Standerd:According to the size of barrel | |
| Handspike : | Material: Medical and high transparent PP |
| Standerd:According to the size of barrel | |
| Cannula : | Material:Stainless steel AISI 304 |
| Colored: According to ISO standards 6009 | |
| Needle : | Material:Stainless steel AISI 304 |
| Diameter and Length:According to ISO standards 9626 | |
| Needle Protector : | Material: Medical and high transparent PP |
| Length:According to the length of needle | |
| Lubricant Medical silicone (ISO 7864) | |
| Scale Indelible according to ISO Standards | |
| Packaging polythene (PE) or paper-plastic | |
| Apply for : | Human injection or Veterinary use |
| Sterilized by EO Gas : | Non-toxic and non-pyrogenic |
| Shelf Life : | 5years |
| Certificates : | CE, ISO13485 |
| OEM/ODM : | Customer's design is welcome |
| Item | Size | REF. No. | Primary packaging | QTY./Secondary packaging(pcs) | QTY./Storage packaging(pcs) | Storage packaging dimension(cm) |
| 2-parts Luer Lock Syringe without needle | 1ml | E1SWO | blister pouch | 100 | 3600 | 61.5*38*48.5 |
| 2ml | E2SWO | 100 | 3000 | |||
| 5ml | E5SWO | 100 | 2400 | |||
| 10ml | E10SWO | 100 | 1600 | |||
| 20ml | E20SWO | 50 | 900 | |||
| 2-parts Luer Lock Syringe with aside needle in blister pouch | 1ml with 25Gx5/8" | E1S25/58 | blister pouch | 100 | 3600 | 61.5*38*48.5 |
| 2ml with 23Gx1" | E2S23/1 | 100 | 3000 | |||
| 5ml with 22Gx1 1/4" | E5S22/114 | 100 | 3000 | |||
| 10ml with 21Gx1 1/2" | E10S21/112 | 100 | 2400 | |||
| 20ml with 19Gx1 1/2" | E20S19/112 | 50 | 900 |
